Displays

GFX Displays

GFX displays, powered by Precision-IQ™, provide a single hub for managing in-field work, including auto-guidance and application control, and are compatible with virtually all machinery brands.

Find a Dealer

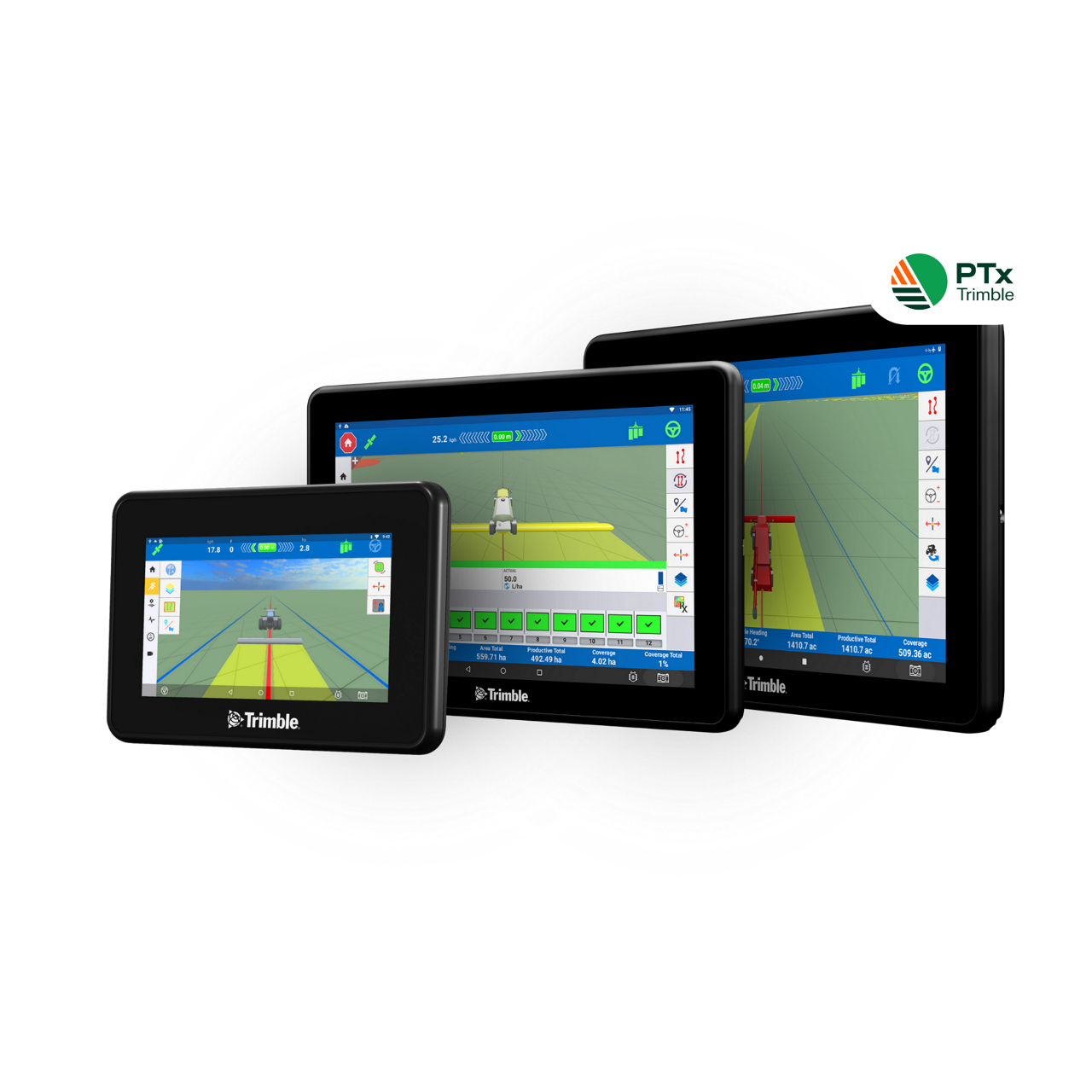

1:1 Images - ptxt-gfx-displays-product-hero

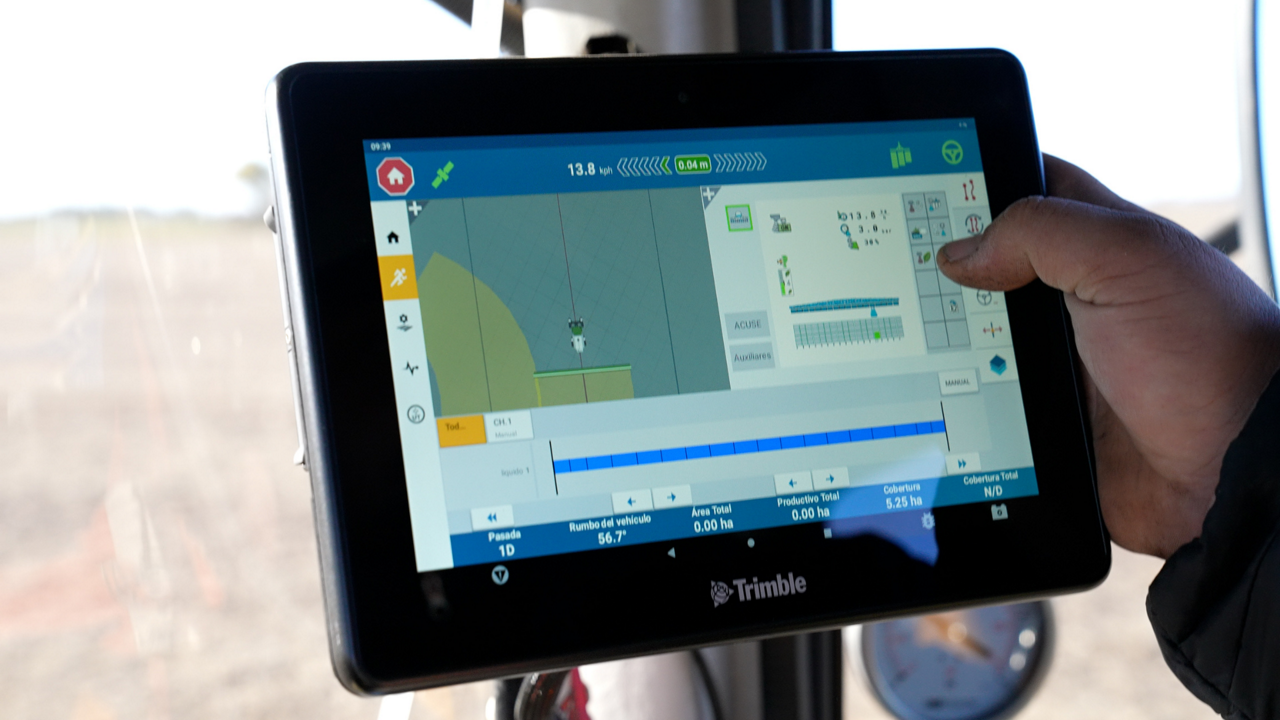

Farmer with hand on a PTx Trimble GFX display.

Optimize Compatibility and Connectivity

GFX displays can be used across nearly all equipment – regardless of make, model or operation – and are easily moved between vehicles to match your operational or seasonal needs. Plus, with Bluetooth® and Wi-Fi™ connectivity, information from Precision-IQ integrates with PTx FarmENGAGE to give you full control of your data.

Farmer uses a PTx Trimble GFX display in the cab of his tractor.

Future-Proof Your Operations

GFX displays are built to easily adapt to the needs of your growing operation – including screen size options, compatibility for a range of accuracy levels and steering systems, support for numerous implements and ongoing Precision-IQ feature upgrades.

A farmer uses a GFX display from PTx Trimble in his tractor.

Minimize Your Learning Curve

Thanks to the familiar, flexible and intuitive nature of our GFX displays’ Android™ operating system and Precision-IQ interface, your operators can get to work more quickly.

Manage Advanced Guidance Features in Precision-IQ

NextSwath

Automatically guide your vehicle along the best path for turning around and approaching the next row or swath.

Learn More

FreeForm

Adapt vehicle guidance behavior to the unique contours of the field from a single recorded pass.

Learn More

Square Headlands

Auto-guidance lines extend all the way to a field boundary, covering sharp corners and small plots.

Learn More

Compare GFX Display Options

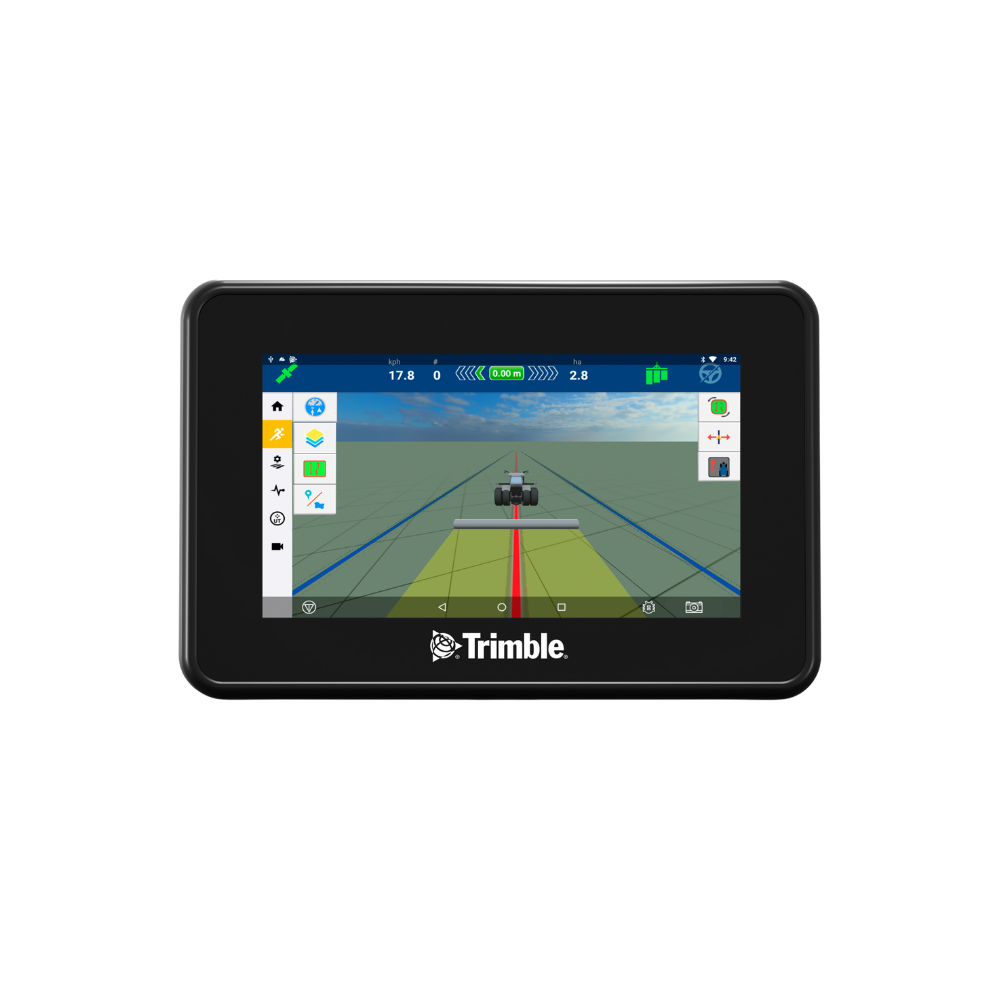

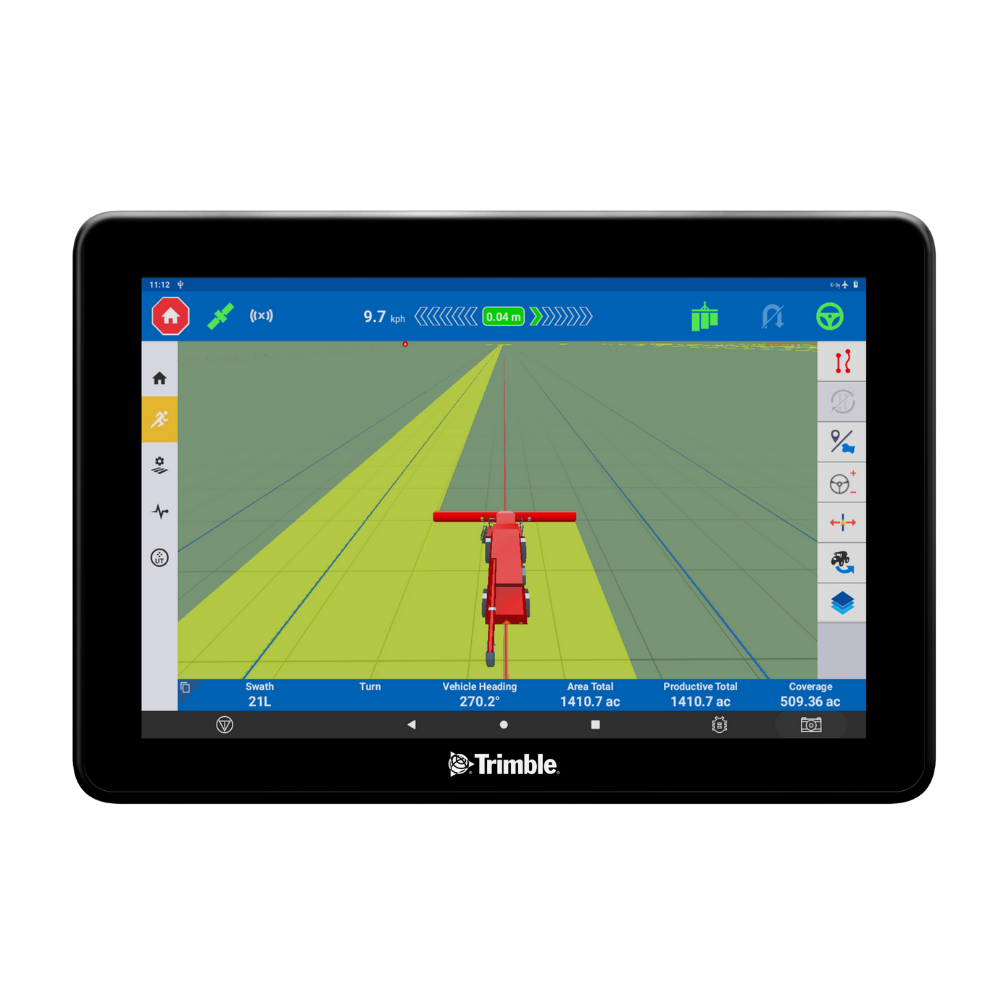

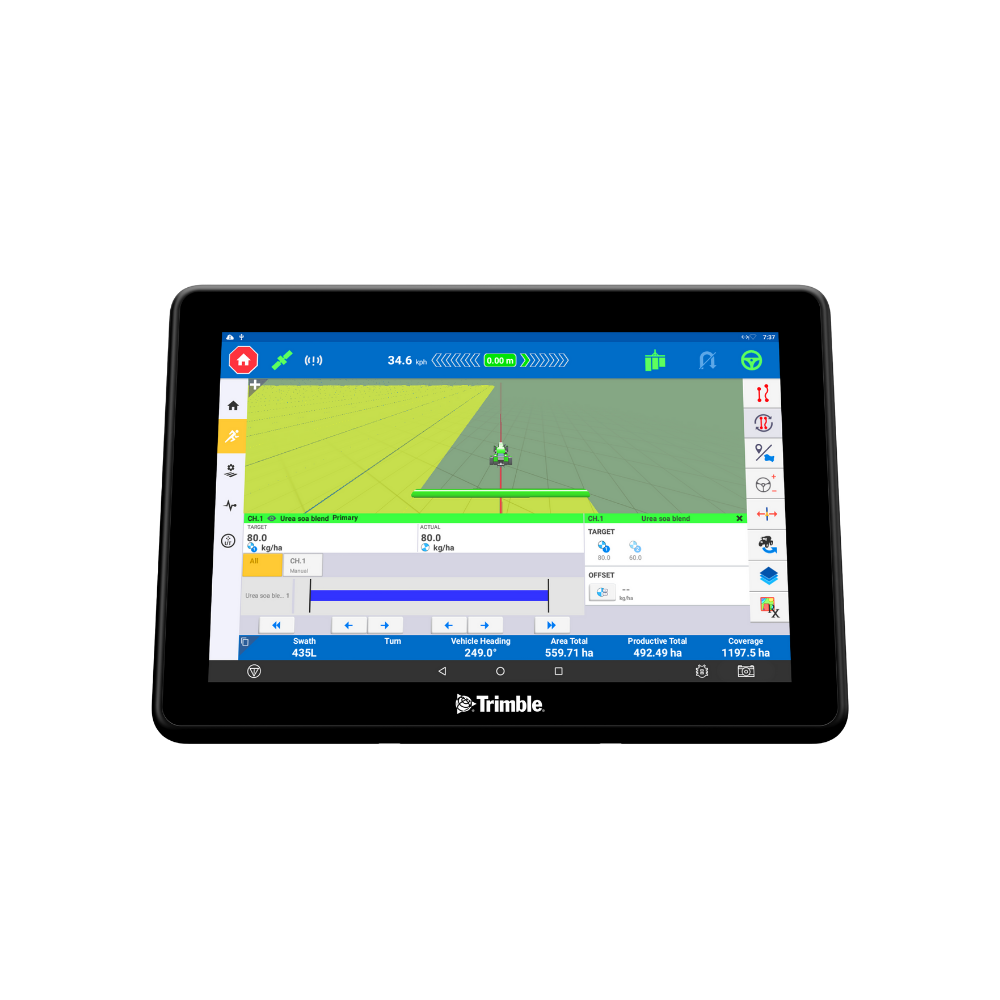

		GFX-350™	GFX-1060™	GFX-1260™
Specifications	Screen Size	7 inch (17.1 cm)	10.1 inch (25.6 cm)	12.1 inch (30.7 cm)
	Storage	16 GB	32 GB	32 GB
	RAM	1 GB	2 GB	4 GB
	Input Channels	2	6	6
	Sections	24	255	255
	External Camera Support	1	2	2
	USB	1	2	2
	100Base-T1 (BRR ports)	1	1	2
	CAN Ports	1	3	3
	TeamViewer Remote Control	Standard	Standard	Standard
	Auto Asset Detection	Option	Option	Option
Software Connected Features	AutoSync™	Option	Option	Option
	Operator Permissions	Option	Option	Option
	Utilization	Option	Option	Option
	Work Orders	Option	Option	Option
Guidance Line Features	Headland, AB, A+ Curve, Pivot, As-Applied, Create Access Paths, Create Tram Lines, Guide Tram Lines	Standard	Standard	Standard
	Guide to Feature Lines		Standard	Standard
	Return to Pause	Standard	Standard	Standard
Application Control Licenses	Field-IQ™, ISOBUS Univeral Terminal, ISOBUS Task Controller (TC), Prescriptions, Serial Rate and TUVR, Multi-Product Control	Option	Option	Option
ISOBUS	Universal Terminal, Task Controller	Option	Option	Option
	Controlled Channels	Options – 1 Option – up to 2	Standard – 1 Option – up to 4	Standard – 1 Option – up to 6
	ISO TC Section Control	Up to 24 sections	Up to 255 sections	Up to 255 sections
Field-IQ	Controlled Channels	Option – 1 Up to 2*	Option – 1 Up to 4*	Option – 1 Up to 6*
	Field-IQ Section Control	Up to 24 sections*	Up to 48 sections	Up to 48 sections
	Field-IQ Controlled Product Drives	Up to 2	Up to 4	Up to 6
	Population/Blockage Monitoring	Up to 48 rows	Up to 96 rows	Up to 96 rows
	Details (Pop, Sing, Skips, Multiples, Spacing)	Option	Standard	Standard
Serial Rate/TUVR	Controlled Channels	Option – 1 Up to 2*	Option – 1 Up to 4*	Option – 1 Up to 6
	Serial/TUVR Sections	Up to 24 sections	Up to 255 sections	Up to 255 sections
Other Features	Variable Rate & Section Control	Up to 2 channels*	Up to 4 channels*	Up to 6 channels*
	Multi-Channel/Multi-Product	Option – Enables 2 channels	Option – Enables 2-4 channels	Option – Enables 2-6 channels
	WeedSeeker® 2 system	Option	Option	Option

*Any additional channels require the Multi-Channel/Multi-Product License

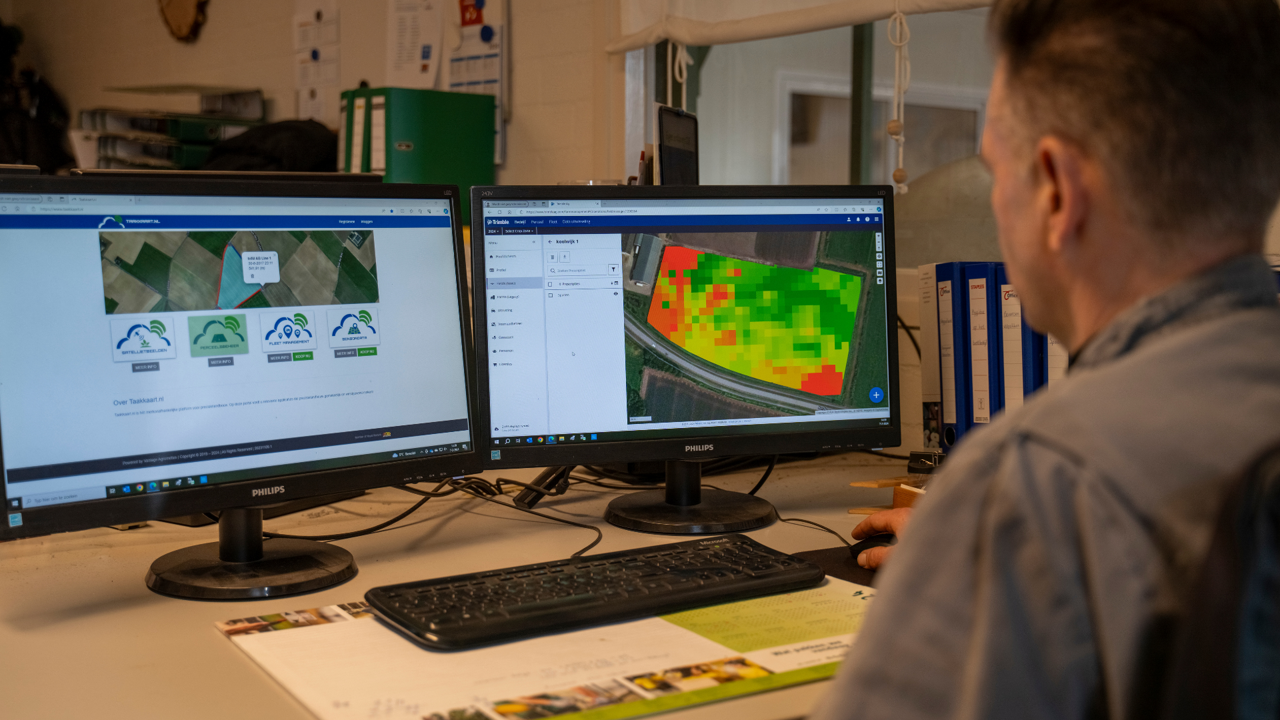

Manage Operational Data with FarmENGAGE

Information from Precision-IQ integrates with PTx Trimble FarmENGAGE to revolutionize the way you manage your farm operations, including specific tools and workflows for pre-season planning, in-season execution and post-season analysis.

Leverage AutoSync™ and Direct Send to share data across in-cab, mobile and office devices

Create, manage and sync resources for field work, including boundaries, guidance lines, management zones, crop zones, landmarks and prescriptions

Connect data from across third-party farm management software platforms, including those from Raven, AGCO, John Deere, Case IH, New Holland and more

Learn More

Explore What’s Possible with PTx

Connect with a local dealer or reach out to our OEM team to discuss your equipment, goals and integration options across both of our leading brands – PTx Trimble and Precision Planting.

Find a Dealer Contact the PTx OEM Team

GFX Displays

Why choose GFX displays?

Optimize Compatibility and Connectivity

Future-Proof Your Operations

Minimize Your Learning Curve

Manage Advanced Guidance Features in Precision-IQ

NextSwath

FreeForm

Square Headlands

Compare GFX Display Options

Specifications

Manage Operational Data with FarmENGAGE

Related Products

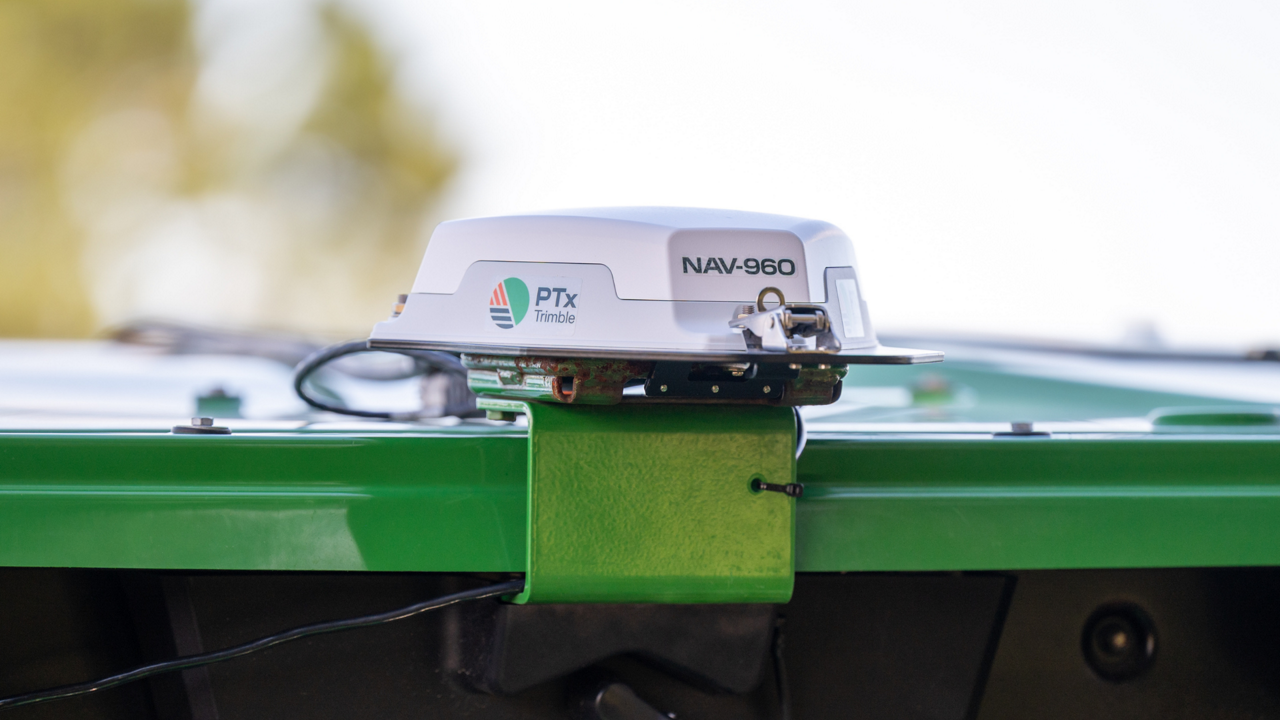

NAV-960 Guidance Controller

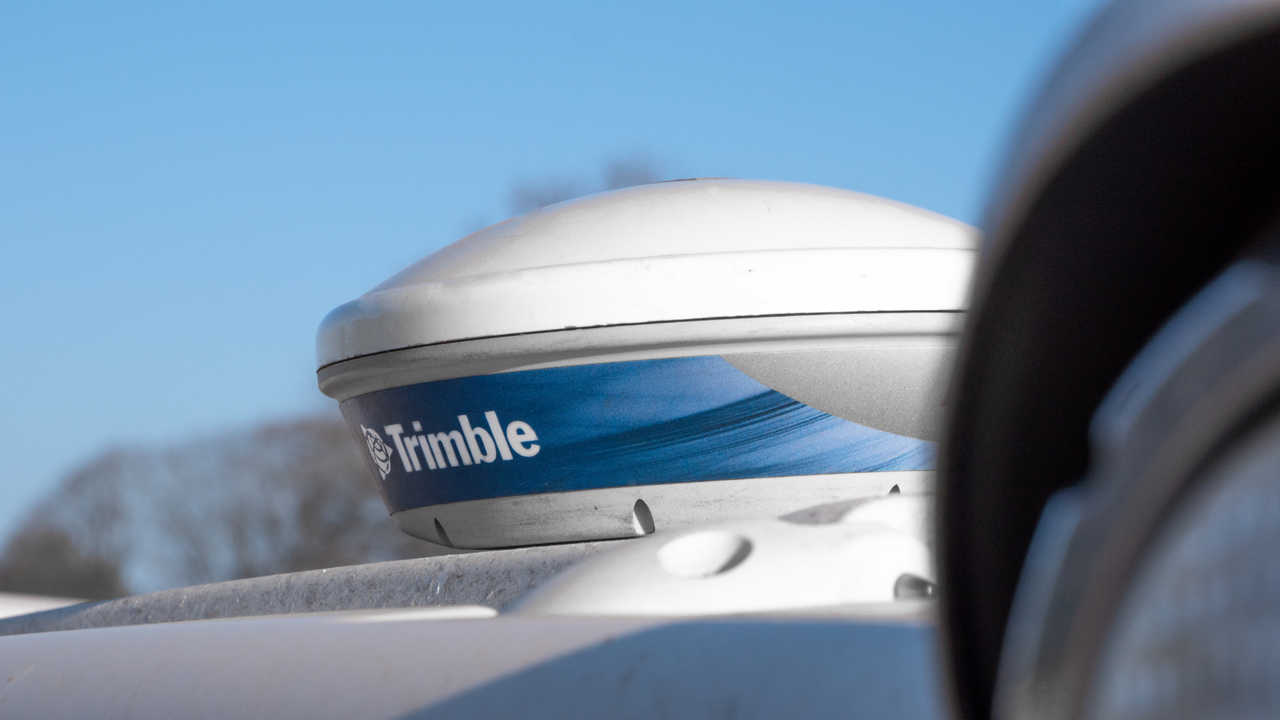

NAV-500 Guidance Controller
