Land Forming
FieldLevel II System

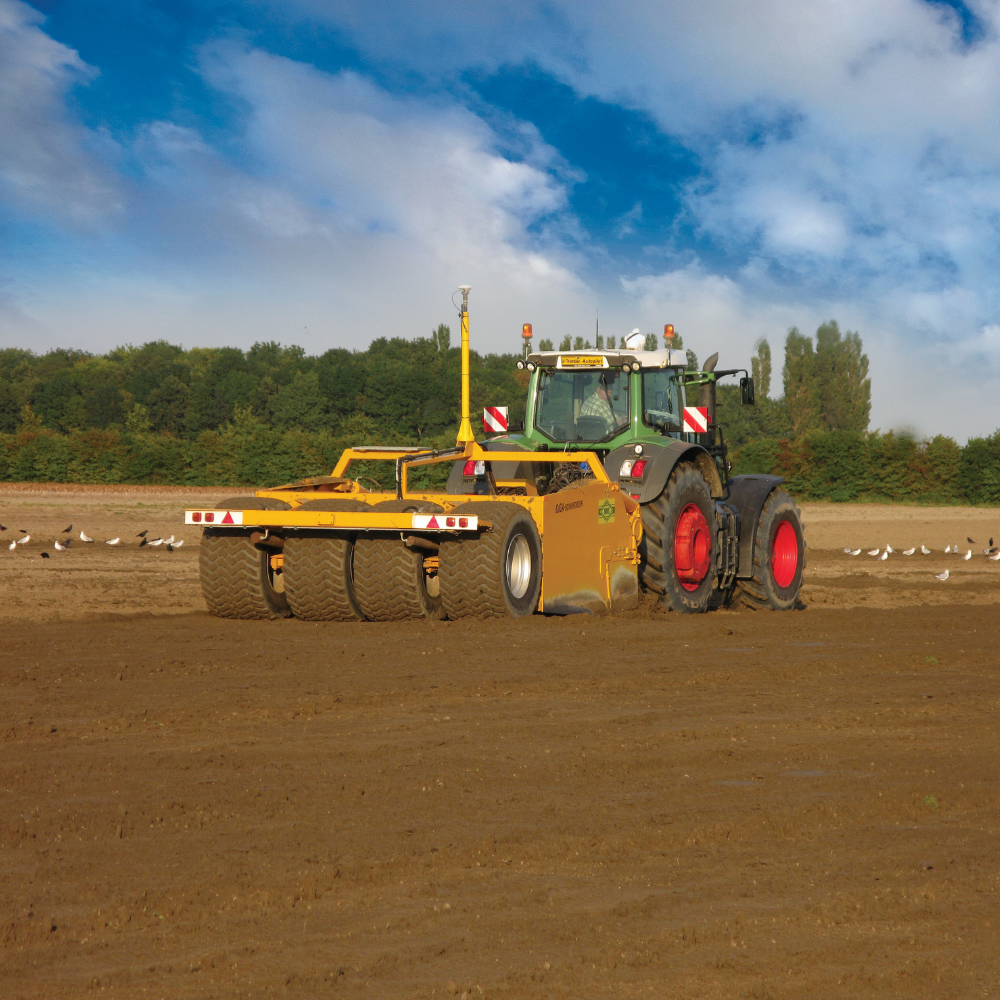

The FieldLevel™ II system from PTx Trimble is a comprehensive solution that streamlines every step of the land forming process for dual and tandem systems, including surveys, analysis, design, estimates, forming and verification.
Why choose FieldLevel II?
Improve Yields and Minimize Costs by Controlling Excess Water
Use Any Equipment Make or Model to Grade Fields
FieldLevel II for Land Forming
Survey
- Precisely map fields with RTK precision
- Create boundaries, interior points and surfaces with ease
- Calculate and report on the true area of your survey for optimal field coverage and accurate surface designs
Design
- Create a best-fit surface using AutoPlane technology
- Define primary and cross slopes for prescribed orientation and grades
- Use Multiplane technology for more complex field requirements

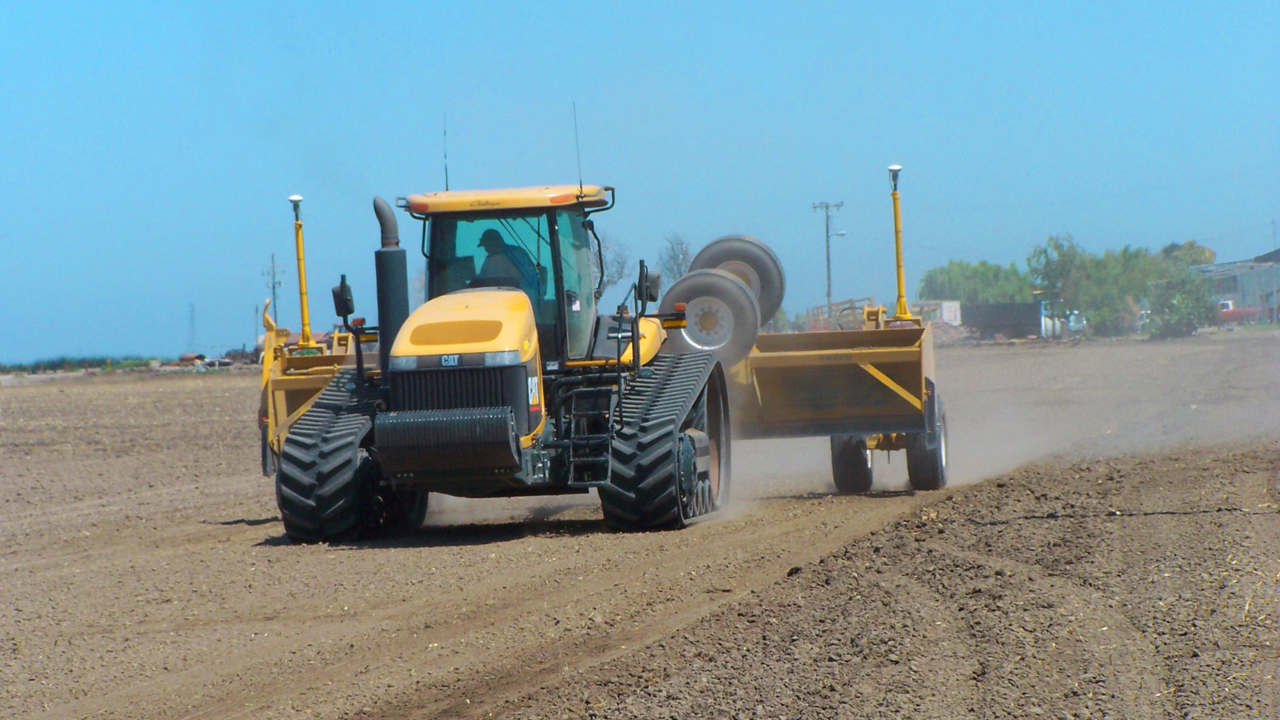

Form
- Automatically control the scraper hydraulic valves on any type of tractor and scraper to level your fields
- Operate both tandem and dual scraper systems to increase the productivity of your land forming projects
FieldLevel II for Levee Creation
Complete Levee Solution
Survey
- Capture 3D topography data using the FieldLevel II module on the TMX-2050 display
Design
- Analyze field shapes using 3D view, contours, flow arrows and tributary information within WM-Subsurface software
- Define starting point, vertical intervals, and turn radius capability and WM-Form software will determine the optimal levee location
Installation
- Use your Autopilot™ steering system to accurately guide your tractor as levees are installed
Using a Contour
Survey
- Use FieldLevel II to manually mark levees along field contours
Design
- Define the start point of your levee in your PTx Trimble display
Installation
- Allow your PTx Trimble display to guide you as you mark perfect levees along the contour
- Decrease time and difficulty associated with marking a levee by changing the blade step up or down as you move from one contour to another
Specifications
- Includes FieldLevel II survey and design module installed on TMX-2050™ display
Control components installed directly to the tractor's hydraulic system or onto grading equipment
2D and 3D design options
Options for complete levee design/guidance or manual guidance along a contour
